Due to intelligent sensor technology: Increased utilisation at Washplex, Linz


Parking guidance system from
MSR-Traffic in Lower Bavaria and MSR-Austria enables smart parking in the suction hall.



Managing Director Hans Hoffelner's goal was to make the use of the suction hall more efficient and to offer smart parking solutions. After the fully automated washing process, the driver can then "finalise" the cleaning on his own in the suction hall. Interior cleaning, floor mat cleaning, fragrance sprays etc. can be used there free of charge.



Two white cars and a black car in the wash

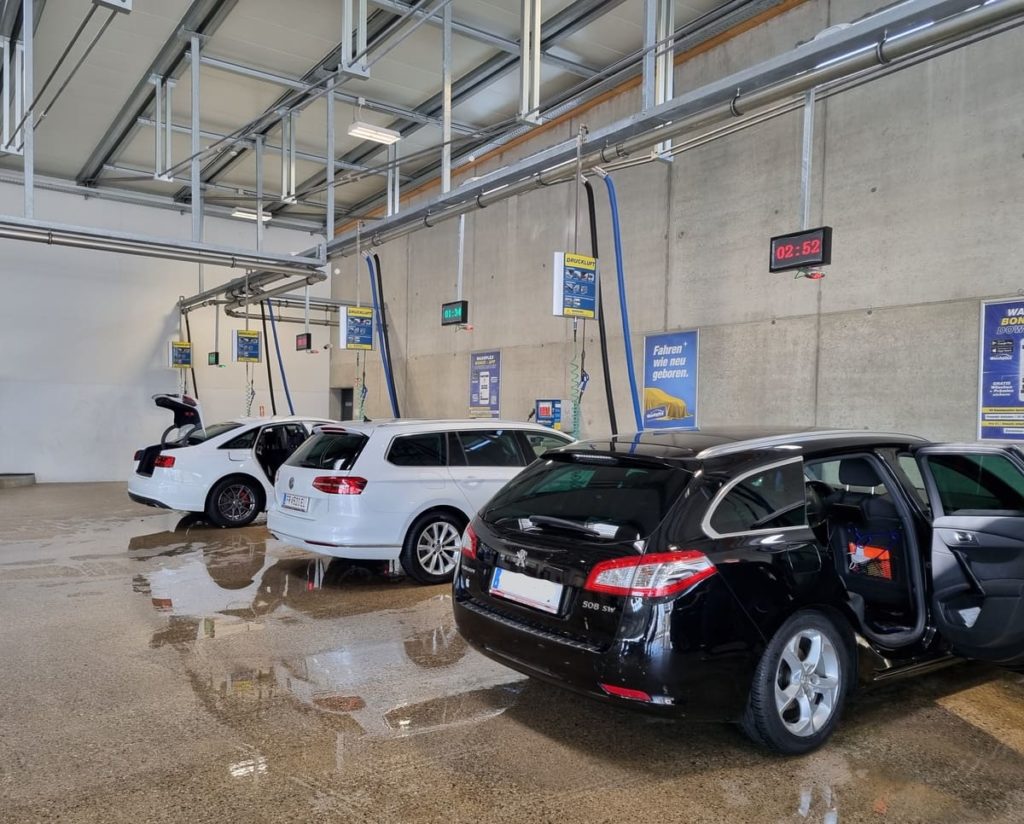

Suction hall of the car



The operator's problem is obvious - at peak times, the hall is completely full, as most customers are happy to take advantage of the free offer. One quickly forgets that the next customers - coming from the car wash - would also like to make use of the offer.















Smart Parking solutions by MSR-Traffic and MSR-Austria



An intelligent parking guidance system shows the user that he has 15 minutes to use the free service. If the standing time is too long, the user is explicitly informed.

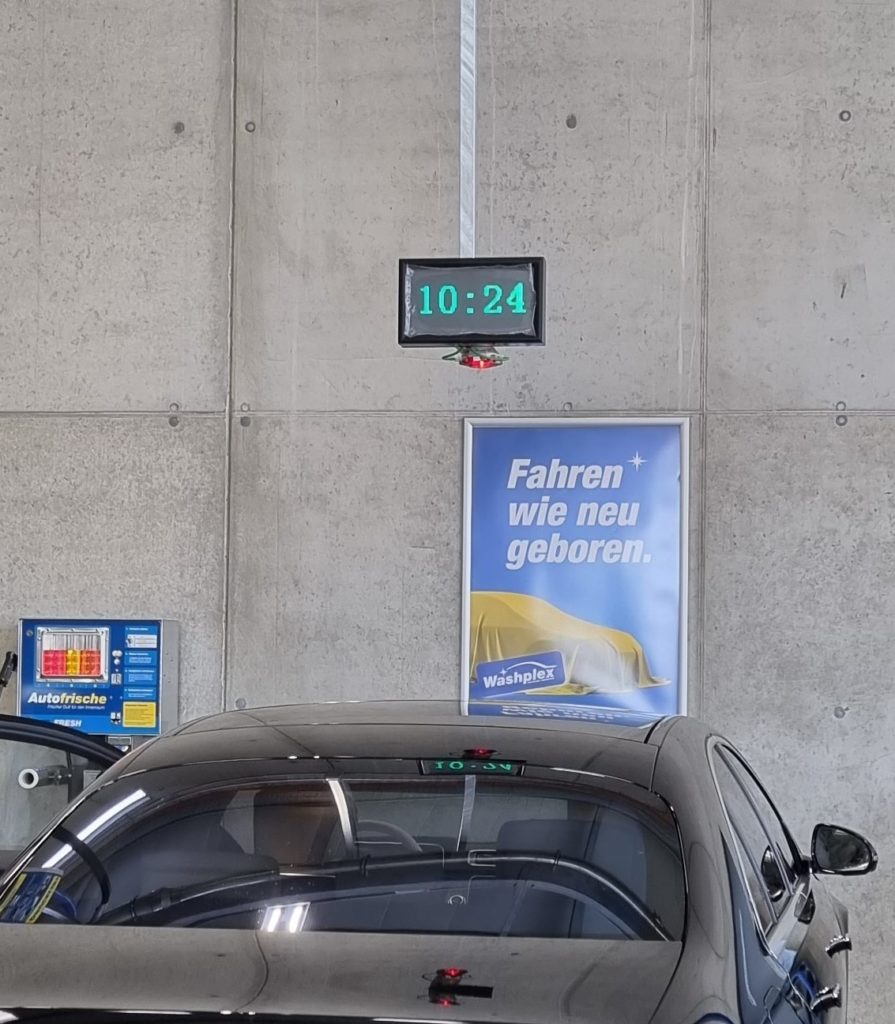

A black car, a poster and a digital clock display

LED matrix display in the Washplex suction hall



Dynamic LED matrix displays above each vacuum cleaner space start a 15-minute counter in real time as soon as the respective box is occupied. Occupancy is detected by ultrasonic sensors with integrated status LEDs positioned centrally above the parking space by MSR. Click here for the video.



After 15 minutes at the latest, the vehicle should leave the vacuum cleaner box again in order to be able to offer a free box to the following washed vehicles. If the time is exceeded, the counter in the display counts up and the operator receives information via the ParkGard© Control Center (PGCC) software from MSR-Traffic that the parking space has been occupied for too long.





See the video for more information on single-space monitoring with ultrasonic sensors.





The heart of the intelligent parking guidance system - the ParkGard® Control Center (PGCC).

White, quadratic device with display and indication of a statistic

©Copyright MSR-Traffic - Intelligent parking guidance system ParkGard® Control Center (PGCC)



The PGCC establishes the connection to the ultrasonic sensors and displays the counting information on the corresponding LED matrix displays. The PGCC is responsible for controlling the parking guidance system, storing historical data, compiling statistics, visualising ongoing operations and communicating with other systems.















MSR-Austria (www.msr-austria.at) was charged with this exciting project by its partner Neuhauser Verkehrstechnik GmbH & Co KG.

From the idea to the turnkey parking guidance system. MSR-Traffic and MSR-Austria offer innovative sensor technology that enables counting and single space detection of vehicles indoors and outdoors. Drivers are quickly guided to the next available parking space via dynamic traffic guidance technology or via app. In addition to the development, production and sales of intelligent parking guidance systems, MSR-Traffic also supports the planning and installation on site. If you have any questions please send us an email or give us a call.
